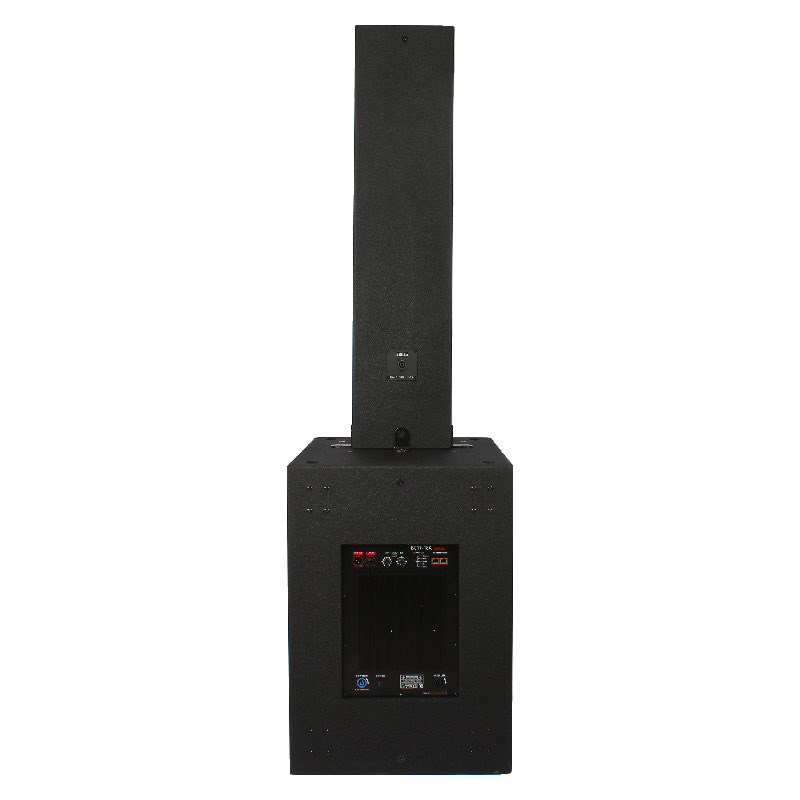

BC17-18A
Type: 3-way active speaker
HF: 5.3″ with 2″ Voice coil
MF: 4x 8″ Midrange with 2″ voice coil
LF: 18″ Subwoofer with 4″ voice coil
Output power: 1000W + 600W + 100W
Total Output: 1700W RMS
DSP: DSP processor 48KHz – 56 bits with 5 presets, RS485 Network
Operating Frequency Range: 42Hz – 20KHz (@-3dB)
Frequency Response:38Hz – 20KHz (@-10dB)
Maximum Peak SPL: 132dB / 138dB (peak)
Horizontal Coverage: 100°
Vertical Coverage: 40°
Audio Input: Combo XLR female input + Jack 6.35
Input Impedance: 10KΩ between Pin 2 and Pin 3
Nominal input sensitivity: 0dBV( 1.0V rms, 1.4V PEAK)
Enclosure: 12+18 mm plywood
Finish: Textured paint
Satellite Dimensions(WxDxH): 270x330x1160mm
Satellite Net Weight(Kg): 32
Subwoofer Dimensions(WxDxH): 540x665x765mm
Subwoofer Net Weight(kg): 46.5
Qty per container 20’/40’/40’HC: 55 / 110 / 130
Description
Type: 3-way active speaker
HF: 5.3″ with 2″ Voice coil
MF: 4x 8″ Midrange with 2″ voice coil
LF: 18″ Subwoofer with 4″ voice coil
Output power: 1000W + 600W + 100W
Total Output: 1700W RMS
DSP: DSP processor 48KHz – 56 bits with 5 presets, RS485 Network
Operating Frequency Range: 42Hz – 20KHz (@-3dB)
Frequency Response:38Hz – 20KHz (@-10dB)
Maximum Peak SPL: 132dB / 138dB (peak)
Horizontal Coverage: 100°
Vertical Coverage: 40°
Audio Input: Combo XLR female input + Jack 6.35
Input Impedance: 10KΩ between Pin 2 and Pin 3
Nominal input sensitivity: 0dBV( 1.0V rms, 1.4V PEAK)
Enclosure: 12+18 mm plywood
Finish: Textured paint
Satellite Dimensions(WxDxH): 270x330x1160mm
Satellite Net Weight(Kg): 32
Subwoofer Dimensions(WxDxH): 540x665x765mm
Subwoofer Net Weight(kg): 46.5
Qty per container 20’/40’/40’HC: 55 / 110 / 130
